Aluminum buggy fork
Hi !

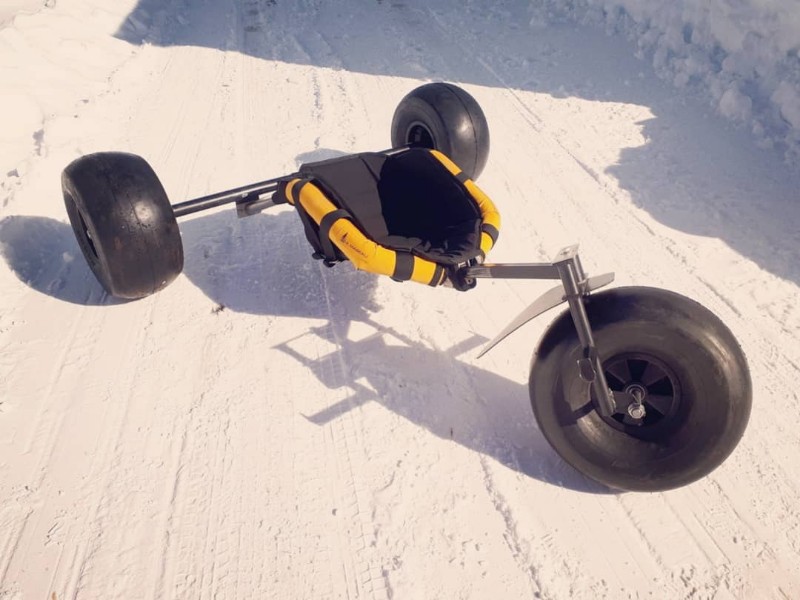

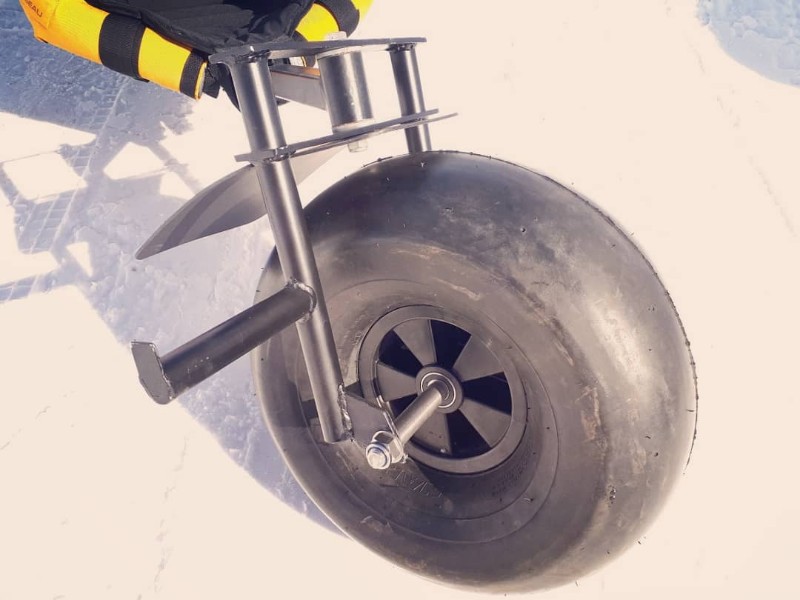

I had an aluminum fork custom built this week for my new bigfoot tires setup.
It's made of 6061 T6 1.25 inch tubing (1/8 inch thickness) and 0.25 x 2 inch flatbar.
I expect everything to hold together just fine since I have a similar fork for my midiXL tires and rode it a few years without any problem.
But still I would like to know if you guys think it will be sturdy enough... the fork is pretty wide. I've seen similar designs made of stainless but
I'm not sure if the aluminum flat bar sections are thick enough...
It's a cruising buggy, made for long distance rides. No freestyle or jumping what so ever...

|
|
|
TEDWESLEY
Member
Posts: 437
Registered: 4-1-2007
Location: portland maine
Member Is Offline
Mood: cat-like,I stalk the wind, finding little, I nap.
|
|
I think you might add angled plates from the lower flat plates to the bearing column to triangulate
the struts and bearing. This will add stiffness and solidity to resist twisting and wracking of the head stock.
It looks like a nice job of fabrication!
Reactors 2.8 3.5 6.9
Peaks 4m 6m 12m
HQ Neo2 11m Ozone Chrono V2 15m WASP 5m
Flexi wide axle w/mids and runners
Skis Nordic skates and winter stuff
Quatro Wing Foilboard Slingshot Foils
NAPKA US06
|
|
|
RedSky
Posting Freak
Posts: 1759
Registered: 7-9-2009
Member Is Offline
|
|
The Parastorm Typhoon Mk2 is an all aluminum bug, one of my all time favorites.
|
|
|
Mageau1986
Junior Member
Posts: 3
Registered: 14-3-2019
Member Is Offline
|
|
One day I wish to build an all aluminum one... I should try to learn how to weld myself  |
|
|
BeamerBob
Posting Freak
Posts: 8308
Registered: 11-5-2007
Location: Down on the bayou
Member Is Offline
|
|
You might have liked the pegs down lower. Keep us posted how it does for you
Coastal Wind Sports Team Rider
Landsegler Disc wheels
PTW Hero Buggy - XXtreme ApeXX Buggy US 88 - Libre Hardcore
IvanpahBuggyExpo.com
Youtube link
Bob Muse
HQ Montana X 8m, Montana IX 12m, HQ Ignition LEI 5m,
PL Phantom 12m, 15m, Big Blu 24m+, Synergy 10m, Venom 10m, 13m , Phantom II 12m Vapors 3.8, 5.4, Crosskite Sonic 7m, PKD Combat 10.3m
Uturn Butane 2.5m PKD Buster 3m Genetrix Hydra 7m Ozone Yakuza GT 14m
|
|
|
Mageau1986
Junior Member
Posts: 3
Registered: 14-3-2019
Member Is Offline
|
|
I'm gonna have to wait a bit for the snow to melt before the first test drive... The beach is nice here in northeastern Quebec, but the winter is very
long :P
|
|
|
