MDK - 16-4-2013 at 10:15 AM

In light of Jeff's accident and now Josh's, I have been researching and experimenting with different AQR setups. I have tried the two popular wichards and both have hung up at certain angles, one more than the other and also had issues with tangling so I have found this unreliable. but I have come accross this system which looks promising
http://vimeo.com/51314932
http://www.spiritofsky.de/content/de/Splitter-MK-Race.html (no longer available at Spirit of Sky)
http://www.alienbuggy.com/forum/viewthread.php?forum_id=39&a...
http://www.spiritofsky.de/products/de/Zubehoer/-9679-Trapeze...
for anyone interested in the MK Splitter (shown in the first post of this thread) they are no longer available in the shop (spiritofsky.de) however one of the developers Gerd Tschampel of Germany has around 20 units available for private sale, you can contact him at gtsch@gmx.de
I have been using mine for a year now and I am very pleased with it. no tangles or binding. however I haven't been in a situation where I needed the auto release yet, but I am confident it will do what it is designed to do.



pokitetrash - 16-4-2013 at 10:42 AM

That looks pretty cool. Is it tethered to a magnet with a metal plate on the seat? Couldn't read the german text but it looked like it did.

indigo_wolf - 16-4-2013 at 11:00 AM

Quote:
Originally posted by pokitetrash
That looks pretty cool. Is it tethered to a magnet with a metal plate on the seat? Couldn't read the german text but it looked like it did.


Got the impression that the "magnet" portion as a quirky Google translation. Thought the system was tethered similar to:

Auto Quick Release setup

Automatic Quick Release

ATB,
Sam

BEC - 16-4-2013 at 11:48 AM

Scott (Flyguy0101) were just talking about this very thing this morning....I told him I was excited to meet Jeff and see his system first hand. He told me he purchased a wichard & pulley and I am thinking about doing the same thing...sure that is a lot of money but I feel that after reading about Jeff's and now Josh's accidents that this cost is about equivalent to 2 minutes in the ER or any other type of surgery.

Why don't some harness manufactures just make these available when you purchase the harness...instead of their own version? I realize de-power is a different story.

bigkid - 16-4-2013 at 12:34 PM

There is a company that makes a quick release setup. The company's name is Libre.

MDK - 16-4-2013 at 12:36 PM

I have been experimenting with the same type of setup as Jeff's, with the same wichards, and I had some trouble getting them to release at certain angles, but this system is better than nothing and I commend Jeff for coming up with it. I Like the system above better for a couple reasons, 1) it eliminates the troublesome wichards and 2) it releases the strop eliminating the possibility of the pulley taking some teeth with it.

MDK - 16-4-2013 at 12:39 PM

also you need to get the connection point of the release strap as close to the kids as possible to limit the amount of exit from buggy and keeping that consistent in any direction.

MDK - 16-4-2013 at 12:42 PM

Hopefully I will be receiving this system soon and I will post my comments and/or video

BEC - 16-4-2013 at 12:51 PM

Well nothing is 100% safe...I mean we are strapping huge kites to our bodies and having them pull us down the beach, over water and on snow etc so enough said right there.
I feel that any system other then being hooked right in is going to be 98 more effective then nothing.

MDK - 16-4-2013 at 01:00 PM

Quote:
Originally posted by BEC
Well nothing is 100% safe...I mean we are strapping huge kites to our bodies and having them pull us down the beach, over water and on snow etc so enough said right there.
I feel that any system other then being hooked right in is going to be 98 more effective then nothing.


I am not dissing anyone here, just always looking to improve and share what I have learned to hopefully help others. I didn't mean any offense.

BEC - 16-4-2013 at 01:32 PM

None taken here I was just stating a fact that most people think we are a little nuts anyway when you tell them what you/we do...

I enjoy reading up on ideas people have to help us all be a little safer...

bigkid - 16-4-2013 at 01:40 PM

A few key points to the QR that, IMHO, need to be implemented one way only. If these points are changed the system will not work.
Not to say anyone has done it wrong, but with 2 years of R and D I think I figured it out.
The biggest point is the strap from the snap shackle has to connect to the buggy DIRECTLY UNDER YOUR A HOLE. As this is the only place that will pull the QR the best. Not 2' in front of you. You will have to weld an extention onto the downtube that goes under your butt, were the strap is connected. Ask my son how many times I used the electric hoist to jerk him out of the buggy before we modified the downtube.
As for the question of, does it work? All I can say is the kite has left me a couple dozen times and I have not left the seat, or will I ever again.

MDK - 16-4-2013 at 02:00 PM

Jeff, I said kids :) you say a-hole :) both are in same vicinity, maybe nobody has used the term kids for ummm nutsack :) Jeff, you have a year on me and what you have shown me is no doubt way better that I have been able to come up with, I just had some trouble with the wichards, not much but while testing in my elaborate testing facility I set up in my garage (side note*** my wife walked in on this and you can imagine what she was thinking......S&M? :) ) anyway I did have a little trouble with the wichards but still worked very well, better than anything else I could dream up. I am going to try the Splitter-MK Race setup for the two main reasons I stated above, I really like the idea of the pulley staying with you. I'm not sure I like the super magnet part though, I will probably do as you did and connect it to the s-neck below the seat.

indigo_wolf - 16-4-2013 at 02:16 PM

Quote:
Originally posted by BEC
Why don't some harness manufactures just make these available when you purchase the harness...instead of their own version?


Any safety system also has on the other side of the scales what can go wrong with it.

The amount of R&D and legal caveat-ridden verbiage to sufficiently insulate a manufacturer to the comfort level required by their insurance carriers would be mind boggling.

We are still a species that requires warnings about using hair dryers in the shower. That had to require some kind of precedent. :crazy:

Also, manufacturers won't devote resources to product development when there hasn't been a demonstrated consumer demand for said product. Kite fliers are a niche market, buggy riders a smaller niche within that, and riders looking for a QR is yet a smaller sample within that demographic.

ATB,
Sam

DAKITEZ - 17-4-2013 at 10:48 AM

I am curious on how this really works in real life situations. I see the good thoughts behind it and do not doubt there is a use for some sort of safety to help prevent more injuries. I see the mechanics of the device working like they are suppose to ... here is my curiosity ... throw in the human factor. The pilot begins to lift out of the seat .. the device releases ... does the pilot let go of the handles???? Human nature is when your holding something and it pulls you grip and pull harder. So the device worked but will the pilot let go and stay in the seat? That is the big question for me.

In the beginning of my buggy riding I had a Libre race. At the time is was one of the better buggies on the market. Not to say anything about the Libre specific as my point is the seat which most all buggies have the same issue. You simply sit in the buggy seats and it is possible to lift you straight up out of the seat. I was constantly getting pulled out of this style seat (it would be the same result on any buggy with same style seating PL, Flexi, Early MG, etc, etc again nothing bad against the Libre .. its just what I had). This all changed when I got my new buggy and it has curved side rails to hold you in. This has saved my butt many times. Instead of getting ripped out of the buggy it picks the whole buggy up, or spins it around in the direction of the kite etc. So finally to my point I am curious if it wouldnt be better to actually strap the pilot into the buggy. So the 2 are actually one. In small light buggies I can see this is probably not the answer, but folks in bigger bugs ?? Another point ... how many times have you seen someone in a small bug (PL, Flexi) actually holding onto one side rail to help stay in the bug? I have seen it a lot :) If they were connected to the buggy so they did not have to hold on with one hand and could fly with both hands would this be safer?
K got my 2 cents in. Give PKF something to talk about today :)

bigkid - 17-4-2013 at 11:41 AM

Dino,
Good question. here is the answer from me.
I have a strap that can be adjusted from very short to very long. We had that problem in the beginning with what distance is ok to travel up and down? While the kite is aloft it is all aver the sky and thus there are different lengths the strap has to be in order not to release or release. so the problem was solved by making the anchor point of the strap to the buggy as I stated earlier, under your a hole. With it at that spot the distance you have to raise up is basically the same in any direction you happen to leave the bug. it took a while to get the right amount of slack in the strap to make life comfy. to short and the slightest amount of raise and the kite is gone. to much slack and you exit the bug and end up on your face as the strap holds you back. with that problem I use a cheep d ring for my keys, which will brake with about 50lbs of pull while the QR will release with only 5-10lb of pull.
the weight of the bug is used to deploy the QR. you ask about strapping into the bug.... ok think about what is happening,
you weigh 200lbs, the buggy weighs 70lbs, what makes you think that the extra 70lbs or what ever it weighs is enough to keep you on the ground? I was lifted 30 feet up, Josh was airborn 15 feet. I dout if the bug weighed 150lbs in my case would have mattered at all. All I know is I dont want to go up with the bug and then come down bottom side up.
I was lifted with a buggy while I was strapped in thinking the same thing, the added weight of the bug is going to keep me on the ground. I was flying with Fletcht in a soccer park and as I made my turn before reaching the goal post net thing, I was lifted up with the buggy still under my rear and I spun around and landed 10 feet behind the goal post thing and smacked up against a 55 gal garbage barrel. end of day, dont like this either.

So when the kite is released it is gone in a split second, you dont have to hang on for dear life. I have mine set up to raise up a few inches, that way the kite is gone and I am not disturbed at all by any surprise other than the system just saved my life again.

MDK - 17-4-2013 at 12:17 PM

Quote:
Originally posted by DAKITEZ
here is my curiosity ... throw in the human factor. The pilot begins to lift out of the seat .. the device releases ... does the pilot let go of the handles???? Human nature is when your holding something and it pulls you grip and pull harder. So the device worked but will the pilot let go and stay in the seat? That is the big question for me.


Yes this can be an issue. I personally still ride with my hands high on the handles (a habit I need to break since I am now usually hooked into a harness) I think if you forced a habit to hold the handles lower and relaxed (the lower the better) and kept your thumbs straight and not wrapped around the handles then when the AQR is activated the handles should go into the brake position and that should give you time to decide weather or not you want to let go if they weren't ripped from your hands. I think how you grip the handles are very important in any case and one should be aware of this.

indigo_wolf - 17-4-2013 at 12:21 PM

Quote:
Originally posted by DAKITEZ
I see the mechanics of the device working like they are suppose to ... here is my curiosity ... throw in the human factor. The pilot begins to lift out of the seat .. the device releases ... does the pilot let go of the handles???? Human nature is when your holding something and it pulls you grip and pull harder. So the device worked but will the pilot let go and stay in the seat? That is the big question for me.


I think this has a lot to due with muscle memory.... how your body works when the human/ape brain shuts down and the lizard brain comes out to play. The other aspect is how we learn to hold our handles... which seems like it should be a simple thing, but...

One of the reasons, I like the Flexifoil Prolink handles is that they raise your grip on the handles a bit and give you a concave thumbrest on the top of the handle. Without all four fingers and the thumb wrapped about the shaft of the control handle, I think it's marginally easier to resist the automatic "death grip" reflex.

Without getting into the whole kite killer/no-kite killer debate, I think that also plays into developing a "love you like a 3rd cousin" but not a "till death do us part" relationship.

Quote:
Originally posted by DAKITEZ
In the beginning of my buggy riding I had a Libre race. At the time is was one of the better buggies on the market. Not to say anything about the Libre specific as my point is the seat which most all buggies have the same issue. You simply sit in the buggy seats and it is possible to lift you straight up out of the seat. I was constantly getting pulled out of this style seat (it would be the same result on any buggy with same style seating PL, Flexi, Early MG, etc, etc again nothing bad against the Libre .. its just what I had). This all changed when I got my new buggy and it has curved side rails to hold you in. This has saved my butt many times. Instead of getting ripped out of the buggy it picks the whole buggy up, or spins it around in the direction of the kite etc. So finally to my point I am curious if it wouldnt be better to actually strap the pilot into the buggy. So the 2 are actually one. In small light buggies I can see this is probably not the answer, but folks in bigger bugs ?? Another point ... how many times have you seen someone in a small bug (PL, Flexi) actually holding onto one side rail to help stay in the bug? I have seen it a lot :) If they were connected to the buggy so they did not have to hold on with one hand and could fly with both hands would this be safer?
K got my 2 cents in. Give PKF something to talk about today :)


I think, when you start grabbing onto the side rail of the smaller buggies, that's a find indicator that you have started holding down sufficient speed/power where are more speed-oriented buggy might be in order.

Strapping the pilot to the buggy has trade-offs. While it might prevent an OBE. You are implicitly signed the "till death do us part" contract. If there is sufficient wind to life you and the buggy, thing's probably won't end well either. Not sure what their exact strength is, but what if you snap one of more of the buckles on the straps holding the seat in place? All kinds of fun if your carrying lateral speed when you land with your butt now kissing the ground.

If you flip the buggy along any axis, at speed, you will rapidly exceed the design limitations of your body.... with the most likely victims being the neck or spine.

ATB,
Sam

bigkid - 17-4-2013 at 12:46 PM

When you drive your car, how do you hold the wheel? If you have a death grip on it you can handle the front tire blow out, or not.
What I am saying is that you dont have to death grip the handles, just hold them and relax. If you cant relax and lightly hold the handles my guess is you may well be a bit passed your comfort/skill level. Not that thats a bad thing but what fun is hanging on for dear life unless you are going over the cliff and the rope is got a bit to much slack in it.:lol: Besides, a couple of times I was pushing way to hard and trying to create an OBE and with a death grip had the handles ripped out of my hands, my pinky finger is still a little tender a few months later. My fault completely, but who gives a rip? I never left the bug. Neener Neener Neener, like that basketball player on that TV commercial who bats away paper and other things with the remark, not in my house, no OBE today.

fletcht - 17-4-2013 at 02:37 PM

Just to add my 2 cents, it used to be a nickel but I left 3 cents on the beach last Saturday. I have been giving these quick releases, strapping into a buggy, a lot of thought for quite awhile. After an incident Saturday at Manzanita I am back to square one. Winds were 18 -20 tide was just past high and the beach was soft. Kept working out to water line trying to find harder sand. The 2.8 was working but I was having trouble in the soft sand. Went to my 4.5, no longer had issues with soft sand. There was one short section of the beach where the wind was really rippin through, maybe 50 yards wide. Long story short, and the purpose of this post, coming back through that area, kite at about 11:00. Next thing I knew I was looking at my hardcore coming down on top of me, things kind of went slow motion. However it never did land on me, I landed about 15 feet away. My bell was rung, and I am not moving my shoulder much. BUT I am glad I walked away.
So, no, I would not want to be strapped into the buggy, stuff happens, and if I had a quick release, the buggy would of landed on me, I was still stropped in. The second time I landed the kite and I departed company.
Like I said, I am back to square one on this whole issue again. I also knew I was flying to overpowered for the space that I had. I think Weldngod said listen to the inner voice when it speaks to you, I was I just wasn't really paying attention to what the voice was saying.
Keep the conversation going, there are some good thoughts getting tossed around.

MDK - 17-4-2013 at 04:06 PM

Quote:
Originally posted by fletcht
stuff happens, and if I had a quick release, the buggy would of landed on me, I was still stropped in.


could you elaborate on this? do you mean a auto quick release? and if so why would the bug land on you? sorry my simple mind needs more detail to understand, thanks :)

In light of the latest accident

skimtwashington - 17-4-2013 at 04:25 PM

..This is an appropriate response and positive post.

At $275 Euros..this 'Splitter' is an expensive device. Is it the best/safest/most reliable? Maybe.

I am suggesting an opportunity-in light of the recent accident- for all those who have a set up and perhaps posted their safety set ups before, or not at all.... to post or repost additional safety device systems/set ups again (or for the first time). For maybe not just those in a buggy..... but those on boards and such, also....?

I feel an AUTO set up(no human thinking to activate....like a set up in video of splitter) that self activates and releases is clearly by far the safest and quickest response as opposed to any hand activated ones for buggy riders. When you are yanked, it's already a little late to be grabbing at a release.

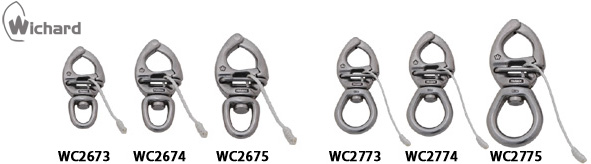

From relatively dirt cheap panic snaps...to ..chicken loops ..to wichards... this expensive Splitter...this post seems to invite and revisit an open discussion and show and tell (that can help make our sport safer with safety releases ?) for those who ride in normal or extreme conditions.


Bear in mind NO device is 100% safe and reliable.... Do NOT run out with any size kite in a hurricane because you have this or another safety release:shocked2:

Flying in dangerous conditions, flying overpowered, is often more of a factor to an 'incident' occurring. Storm Squalls, way too big a kite for occuring wind gust, loss of control,....but sometimes-something unexpected may just occur even flying 'smart' and cautious.


FYI...I fly without any safety release: FB on handles on a strop.... hooked and sometimes unhooked to a harness. I Have a panic snap I am considering incorporating...but not seriously yet.

My first goal of safety is not be overpowered in wild gusty winds. Put the kite away at some moments even. That's a start. and maybe a most important one.

But a backup safety set up is even better.

So What'cha' using? (I got none).

fletcht - 17-4-2013 at 05:10 PM

MDK, from my thinking, which sometimes is faulty I'll admit. I did not get ejected from the buggy, I was pulled sideways and had the buggy come up over the top of me. Or almost on top of me. I was pulled out from under it before it came all the way down. So, if a auto release was in place it would of released the kite, and I would of had 80 lbs of buggy landing on my legs or more. As it was I got jerked out and landed about 15 feet from the buggy. Like I said, this is from my perspective, and I did get slapped along side the head in this incident so maybe my thinking isn't clear.

MDK - 17-4-2013 at 05:29 PM

Quote:
Originally posted by fletcht
MDK, from my thinking, which sometimes is faulty I'll admit. I did not get ejected from the buggy, I was pulled sideways and had the buggy come up over the top of me. Or almost on top of me. I was pulled out from under it before it came all the way down. So, if a auto release was in place it would of released the kite, and I would of had 80 lbs of buggy landing on my legs or more. As it was I got jerked out and landed about 15 feet from the buggy. Like I said, this is from my perspective, and I did get slapped along side the head in this incident so maybe my thinking isn't clear.


Oh ok I get it now, thanks for clearing that up for me :) I see your point, so like others have said, nothing is 100% so it is left up to personal choice. mine is to try and prevent being lofted 10-15+ feet in the air and then dropped even with knowing now I run the risk of having the buggy flip and land on me, which I imagine would be no picnic :)

MDK - 17-4-2013 at 05:33 PM

I agree with skimtwashington, because I am still relatively new to buggying and a big chicken, I find myself underpowered most of the time, but I still like the thought of having a backup plan for those freak gusts.

bigkid - 17-4-2013 at 06:27 PM

I guess I am an odd case at this point:crazy:I have gotten to the point were I dont wear a helmet at times. I have pushed my system to the point that I know what, where, how, when, if, and for sure.
Your right in not having something 100%, but I feel mine works up at 99% and the 1% thats left over is the part I keep pushing to find. I fly overpowered more now than I did in the past. Most of the guys flying the day I was hurt had 3.0 and 3.5m kites, mine was a 2.4m. I have no problem going out at Ivanpah while everyone was flying 3m FB kites, I was out trying a 5m and having a blast. At speeds up at 40 or more I dont like the feeling and I slow down, I have no desire to break any records, unless I had a bit to much of my........ Breaking the record with the Apexx and the rumble seat would be a simple task, the only issue would be my brain and how it works for the day. Overpowered and the risk of an OBE is not part of the equation, at least not anymore. For me anyway.

MDK - 17-4-2013 at 06:53 PM

fletcht, how is Manzanita for buggying?

fletcht - 17-4-2013 at 07:37 PM

Quote:
fletcht, how is Manzanita for buggying?


I stay at Newhalem State Park which is about 1 mile South of town.
It is one of my favorite camp and ride spots on the Washington or Oregon coasts. A short drag of the buggy over the dunes and you have a nice long run, (3 miles maybe) south to the Jetty, and then back to town central. Mid summer can get crowded near town, and horse traffic south can sometimes be a concern. The middle section has never been that over populated even if the campground is crowded. I like it since I can leave the MH in the campground with all amenities and my wife can walk, ride, or read in all the comforts of home. :) We need to ride together somewhere someday.

MDK - 17-4-2013 at 08:11 PM

guys, sorry for getting off subject. fletcht, I will u2u you, thanks!

arkay - 18-4-2013 at 06:37 PM

Manzanita is a horrible place to buggy ;) It's my home beach and I'm there most weekends, lmk if you are in the area!

sand flea - 18-4-2013 at 07:00 PM

Mike thanks for the excellent information and research, it is very much appreciated.

Fletcht sorry to hear about the rollover, i keep mine set up so my seat is barely 2 inches off the ground. I know you know what you are doing and an excellent pilot, just hoping to help.

Chris C1

dirtslide - 18-5-2013 at 10:19 AM

I just ordered one of the Splitter Mk race AQR so we will be able to try it out and see if this is the hot ticket. expensive yes, but what is safety worth ?;)

bigkid - 18-5-2013 at 02:15 PM

Quote: Originally posted by dirtslide
I just ordered one of the Splitter Mk race AQR so we will be able to try it out and see if this is the hot ticket. expensive yes, but what is safety worth ?;)

will you have it at SOBB? I would like to have a look and give it a try. And for the record, If I break it, I will pay for repair, replacement or ?
Just who I am.

I may just break it to have it for my own.:evil: :lol::lol::lol:

dirtslide - 18-5-2013 at 02:30 PM

That is why I asked Chris if I could use his MG :D . I hope to have it but will have to see if it make it in time ,coming from Germany.

bigkid - 18-5-2013 at 02:37 PM

Quote: Originally posted by dirtslide
That is why I asked Chris if I could use his MG :D . I hope to have it but will have to see if it make it in time ,coming from Germany.

Throw the dice and see if snake eyes comes up, if so you could have it in a few days, if not. then I feel sorry for you.:lol:
Something about Germany sending stuff to the US, like we were at war or something. Hope Germany to Canada is better.:smilegrin:

dirtslide - 18-5-2013 at 03:05 PM

You are so right ,I have made a couple order's from France lately for the Sysmic S1 and the first order came in 2 days next one was 2 weeks.:puzzled:

AudereEng - 21-5-2013 at 06:59 AM

This device looks nice but I would like to know are there any techniques used to make the stainless top piece slide better over the top of the split pulley?

Slow international shipments are almost always due to customs.
The US is faster than most of the EU.
Asia is amazingly fast.
It normally depends on how the tax systems work...

bigkid - 21-5-2013 at 07:37 AM

Quote: Originally posted by AudereEng
Slow international shipments are almost always due to customs.
The US is faster than most of the EU.
Asia is amazingly fast.
It normally depends on how the tax systems work...


I found if you need the shipment ASAP, it will take forever and a few more weeks.
If you could care less when it arrives, it shows up the next day.

I had a shipment of kites come from Germany and after 5 weeks of no idea of the location of the package, the kite company sent out another shipment to replace the first one.
A few weeks later I got the shipment and let the kite company know the package had arrived. They asked me if the package was the first one or the second one, found out it was the first one. The second shipment was now lost and no idea of where it was.
I asked the kite company why they sent me used kites when I ordered new ones, they responded that they were new. After looking real close and thinking about it, found out someone tried to fly the kites and did a bit of damage to one of them and then put everything back in the bags and tried to make it kook like they were never touched. Torn and taped bags, line sets put back on the winders, dirty handles and 1 kite with bridle damage, and another kite that wasn't folded right and put back in the bag.

The kite company placed a lost claim on the second shipment and was paid by the shipper, it arrived 7 weeks later in perfect condition.
The used first order was reported as damaged and the shipping company paid out on that claim.
All of this started on 12/17/2012 with the first order and I was notified that everything was paid for and finished on 5/2/2013.

Not sure how to place the second order if at all.
Sorry for the off topic, back to the original program.

bigkid - 21-5-2013 at 07:59 AM

Ken,
did you order all the parts?
strap, spreader bar, or just the QR?

I have been looking at the set up and it is much like one of the Holt Pulleys I have with the sliding catch to hold and release the pin. This is able to spin unlike my setup, unless you incorporate kite killers into the equation. I hope it comes before you leave for SOBB, I really want to have a look. Wonder if it can be worked with one hand.
Might be a sweet setup.:thumbup:

bigkid - 21-5-2013 at 08:48 AM

Quote: Originally posted by MDK
Quote:
Originally posted by DAKITEZ
here is my curiosity ... throw in the human factor. The pilot begins to lift out of the seat .. the device releases ... does the pilot let go of the handles???? Human nature is when your holding something and it pulls you grip and pull harder. So the device worked but will the pilot let go and stay in the seat? That is the big question for me.


Yes this can be an issue. I personally still ride with my hands high on the handles (a habit I need to break since I am now usually hooked into a harness) I think if you forced a habit to hold the handles lower and relaxed (the lower the better) and kept your thumbs straight and not wrapped around the handles then when the AQR is activated the handles should go into the brake position and that should give you time to decide weather or not you want to let go if they weren't ripped from your hands. I think how you grip the handles are very important in any case and one should be aware of this.


While I was at Jibe, my buggy went out on a few runs with other people to try out the QR while they were wearing my harness.
After I got everything back I was riding down the beach and as I made a hard turn the kite came loose. I looked down and found the QR released the kite, the strap was set too short for me. I wasnt pulled out of the bug as it was just a normal turn that required a bit more strap so it would not deploy. I almost didnt hang on to the handles and let the kite go, but being a normal turn was still able to hang on and rehook. Not sure I would be able to hang on to the handles in the event of an unexpected OBE. The question would have to be are you holding on to the handles with enough strength to hold down your weight, say 200lbs? I dont ride like that anymore, I want to relax a bit and enjoy the ride. Not hang on for dear life.

Clive - 21-5-2013 at 01:27 PM

I like the idea of an auto quick release, and have all the parts required, BUT.....

I've just bought one of those newer buggies with the wrap around side rails, these actually do hold you in your seat, I've only had the opportunity to ride it once as the weather here is turning wet/winter, but has anyone tried a system in these bugs, or will the suddenness of a big lift pull you past the rails without taking the bug with you ?

MDK - 21-5-2013 at 01:52 PM

Quote: Originally posted by Clive
I like the idea of an auto quick release, and have all the parts required, BUT.....

I've just bought one of those newer buggies with the wrap around side rails, these actually do hold you in your seat, I've only had the opportunity to ride it once as the weather here is turning wet/winter, but has anyone tried a system in these bugs, or will the suddenness of a big lift pull you past the rails without taking the bug with you ?


countless factors here... the side rails are mostly designed to hold you in place under normal circumstances (kite pulling from the side). I think typically an OEB is more likely to happen when the kite pulls you in the opposite direction that the bug is traveling, or if the bug comes to a sudden stop. I think with these factors you will be separated from the bug. but depending on the design and fit of your side rails the bug may also stay with you for a bit. these are all things that need to be considered if you are trying to prevent the possibility of an OBE, not just the AQR. I have padded and adjusted my seat to help keep my butt planted with lots of side load but it is shallow enough I could easily be pulled out the back, top or front wards. I don't do all the trick stuff so the possibilities are more limited.

jantie - 21-5-2013 at 09:27 PM

why need a QRS??
in case of a windincrease/OBE you'll never be quick enough to release.

if the situation occurs were you don't want the kite to pull no more
you grab hold of the brake-lines for as far as you can reach
an pull them towards you.
no matter how big and overpowerd you fly the kite will/can't do nothing
and just hang like a piece of clothing on an dry-line.
and this way you still have your kite with instead of running after it because you
released it...

my 2 cents.

MDK - 21-5-2013 at 09:40 PM

Quote: Originally posted by jantie
why need a QRS??
in case of a windincrease/OBE you'll never be quick enough to release.

if the situation occurs were you don't want the kite to pull no more
you grab hold of the brake-lines for as far as you can reach
an pull them towards you.
no matter how big and overpowerd you fly the kite will/can't do nothing
and just hang like a piece of clothing on an dry-line.
and this way you still have your kite with instead of running after it because you
released it...

my 2 cents.


we are discussing an "Auto Quick Release" releases automatically when you lift from your seat. nothing wrong with trying to improve on safety.

jantie - 23-5-2013 at 01:15 PM

absolutly nothing wrong with that.
but in my opinion you'll never be fast enough in case of a windincrease/blow.
and i'd like to see the system that can see/feel the difference between a big, fat powerloop
or an overloop/upwindturn and an OBE in comparisment of force.
and that's is why i think it is an utopia

i'll certanly will follow this treath with curiosity.

BeamerBob - 23-5-2013 at 01:42 PM

Jantie, you're missing the point that it is automatic. It releases the kite if the pilot is raised out of his seat, regardless of load from the kite.

MDK - 20-6-2013 at 09:24 AM

I received my Splitter MK Race "Auto" not "manual" Quick Release today from Germany, and after a quick inspection I can confidently say that this thing is brilliant! one thing that I did not realize from the info and pics available online is that it releases you from the kite and the tether connected to your bug simultaneously! friggin brilliant how it does this, I have been wracking my brain on this very issue and now it is solved.








MDK - 20-6-2013 at 09:29 AM

It also allows you to untwist without disconnecting the tether. no plastic all metal, swivals on a sealed bearing.

BeamerBob - 20-6-2013 at 11:16 AM

That's an ingenious piece of equipment.

indigo_wolf - 20-6-2013 at 11:24 AM

Ooooooohhh..... AustriAlpin. I lust after some of their Cobra buckles. :embarrased:

Could you break down these 4 purchase options? The first two are pretty easy, but Google has problems translating the latter ones.

Quote:

Type a: splitter MK Race

Type b: Sliver + MK Race Harnessbracket *

Type c: Sliver MK Race Harnessbracket + * + Gurtbandreißleine with carabiner and buckle Edelstal

Type d: MK Race Splitter + Gurtbandreißleine with carabiner and buckle Edelstal

Ouch... just saw the pricing.

ATB,
Sam

MDK - 20-6-2013 at 12:25 PM

Yeah I Had a hard time deciphering that as well I just sent them an email stating in plain English what I wanted and that seemed to work well. It is a little pricey but let's ask Josh Walsh what he would pay for it. I was a little concerned But after receiving it and knowing the quality now it is well worth the money

indigo_wolf - 20-6-2013 at 12:59 PM

Quote: Originally posted by MDK
It is a little pricey but let's ask Josh Walsh what he would pay for it. I was a little concerned But after receiving it and knowing the quality now it is well worth the money


Not discounting the value....

There is for lack of a better term "a sticker shock ramp" that has to be climbed.

It exists for kites, photography equipment, knives, tools.... pretty much anything once you get deep enough into things.

ATB,
Sam

bigkid - 20-6-2013 at 01:08 PM

Looks good so far.:thumbup:
Mike, can you show the parts that connect to the buggy? What holds the red strap in place before it deploys?

Now the big question, what is the total cost so far? (and when can I try it out?):evil:

MDK - 20-6-2013 at 06:46 PM

Yeah Sam I knew where you were coming from, I was just sharing what I had to keep telling myself as I hesitated to hit the send cash button :)

Jeff, this system leaves it up to the owner to come up with a suitable anchor to the bug. I suspect I will be doing something very similar to your anchor system. the black tether is what is used to connect to your anchor. in the last pic you can see where the chrome ring fits between the post and tapered pin, when pulled through it slides the spring loaded top hat back releasing the splitter pin releasing the kite only, the splitter stays with you. and the carabiner then is able to slide off the open end of the red loop releasing you from the bug if needed. this is also good if you forget to disconnect getting out of the bug, it will release automatically (but be aware it will also release your kite). I paid 283 EUR to my door. I don't recall USD maybe I don't want to know :)

bigkid - 20-6-2013 at 08:37 PM

$375.00, ouch. Then add the cost of the modification to the buggy, $400.00.
But if it works, it will be worth every penny.:thumbup:

If you use KS-P-A-M-L-I-N-K-s with your kite, you wont be able to spin your handles even if the QR does allow you to spin them.

MDK - 20-6-2013 at 09:02 PM

yeah I won't be spending $400 on any mod :) My local welder would build me a buggy for that :) thats true with kite killers but I don't use them.

BeamerBob - 20-6-2013 at 09:25 PM

I saw a mod that had a rare earth magnet that grabbed a small metal plate attached to the seat when you sit down. You could grab the cord to the magnet and pull it loose with your hand but if you just stand up, it will release your kite.

MDK - 20-6-2013 at 09:31 PM

yeah I saw that too, its in the vid I posted up top. just not sure how much confidence I would have in it, It obviously works but getting over the mental part :)

betosoria - 28-10-2013 at 09:21 PM

Hi,

I was wondering if you have seen the release

http://kiteattitudefr.votreboutiquepro.fr/largueurs/kit-larg...

What do you think about it?
Saludos.
Alberto

bigkid - 29-10-2013 at 04:46 AM

Quote: Originally posted by betosoria
Hi,

I was wondering if you have seen the release

http://kiteattitudefr.votreboutiquepro.fr/largueurs/kit-larg...

What do you think about it?
Saludos.
Alberto

Hola Alberto.
441lbs is a lot of weight before it deploys, or more it says. That works out to be me, my buggy, my kite and Levi along with about 120 extra lbs. Also they recommend to replace it after a year, might be the rubberband breaks down and wont work after that.

bigkid - 29-10-2013 at 04:50 AM

This reminded me of Alvord. Mike how did the QR work out? I didnt get a chance to try it out, but I did play with it a bit and picked it apart.
Mike, tell us please.:D is it a :thumbup: or a :thumbdown: or :dunno:

BeamerBob - 29-10-2013 at 08:17 AM

Quote: Originally posted by bigkid
Quote: Originally posted by betosoria
Hi,

I was wondering if you have seen the release

http://kiteattitudefr.votreboutiquepro.fr/largueurs/kit-larg...

What do you think about it?
Saludos.
Alberto

Hola Alberto.
441lbs is a lot of weight before it deploys, or more it says. That works out to be me, my buggy, my kite and Levi along with about 120 extra lbs. Also they recommend to replace it after a year, might be the rubberband breaks down and wont work after that.


I think this is a manual release and the translation is saying even a load that high won't prevent you from being able to release it. It doesn't indicate automatic anywhere.

Scudley - 29-10-2013 at 12:35 PM

I could have used an AQR on Sunday. Amazing how a slight lapse in focus can go so wrong so fast.
S
p.s. NaSCa has a surprising amount of lift.

MDK - 29-10-2013 at 01:07 PM

the MK splitter worked very well. with a couple tweaks it will be very reliable. I will post more about this later when I'm not supposed to be working :)

MeatÐriver - 29-10-2013 at 02:08 PM

You didn't realize you could fly did you Sean? Heh I assume you fared reasonably well.

Scudley - 29-10-2013 at 03:24 PM

I did realize could fly, and this reaffirmed I not overly fond of it. It went great right up to the landing part: rag dolled leaps to mind
S

popeyethewelder - 3-11-2013 at 05:54 AM

I have tried the MK Splitter too....got to say, I love it, not only do I have zero worry now, it also is the best swivel I have ever used and on top of that, now I am not using :-

a Wichard,
aTop Furler,
a D-ring to attach
a snap block

my handles and strop line is much closer to me....

I did my best to translate the web site too MK Splitter Race

The construction is superb, and I have it on authority these guys make zero profit on these, what you pay for these is purely cost price which is commendable

A video may help

skimtwashington - 3-11-2013 at 06:24 AM

..to fully understand the system and appreciate it. The pics and write up might be a little difficult to fully visualize a complete understanding of this system(though I got the general idea fairly well)...but a video would better show the system: how it functions, attachment set up and adjustments particulars.

Harder to do, might be to simulate or actually create a real release example by purposely creating a sudden extreme out of control force.

If this is being sold at cost, it is admirable and a rare gesture.

betosoria - 3-11-2013 at 12:45 PM





betosoria - 3-11-2013 at 12:46 PM

Hi,

The auto release system has been proposed by Rico in the French forum. http://www.powerkite.net/forumSM/index.php?topic=33772.150


Here my small version:

Manual release
The Kamove release can be found here http://kiteattitudefr.votreboutiquepro.fr/largueurs/kit-larg... is one on the right



http://www.servimg.com/image_preview.php?i=7&u=18395119

In red the platform (where the pulley screw will pass).
In green where the rubber band maintaining the closed position
In blue ..du the release.

The assembly requires a pulley, a fastening for the pulley, a release cord with something to pull it and a fastening cord.
The manual assembly should look like this:

http://www.zimagez.com/zimage/img20130803091316.php

The autorelease. Assembly

http://www.servimg.com/image_preview.php?i=8&u=18395119

In blue the autorelease.
In red the closing rubberband.
In yellow a stainless steel ring 40mm diameter. This ring will be attached to the carabiner of the manual Kamouve.

In green the autorelease cord.
Two small knots(“petit noeud”). The first one helps to stop the cord’s sliding. It should not be to close the autorelease, just underneath when the autorelease is open. The second knot is used to tie the autorelease “lengh” to the buggy.


USING THE SYSTEM

Manual release.
Using the manual auto release is not complicated: attach the kite with the (kamove / pulley / harness) I pull the release, it is not more complicated than that.

Autorelease
Verify the autorelease is “armed”, i.e. that is closed and the stainless ring (YELLOW) is in place.
Attach the kite with the Kamove. Get in the buggy. Grasp the stainless ring and fix it to the carabiner. The system is ready.

To get off the buggy, if I want to keep my kite attached, I pull the stainless ring or the carabiner.







betosoria - 3-11-2013 at 01:14 PM

Quote: Originally posted by bigkid
Quote: Originally posted by betosoria
Hi,

I was wondering if you have seen the release

http://kiteattitudefr.votreboutiquepro.fr/largueurs/kit-larg...

What do you think about it?
Saludos.
Alberto

Hola Alberto.
441lbs is a lot of weight before it deploys, or more it says. That works out to be me, my buggy, my kite and Levi along with about 120 extra lbs. Also they recommend to replace it after a year, might be the rubberband breaks down and wont work after that.


The release certainly deploys under a slight charge. It deploys even under heavy loads like 150kg(330lbs). I think that this is what Jeff is taking about.

You can take a look at

http://www.youtube.com/channel/UClfLWizk0johCFls8TLlR4Q?feat...

http://vimeo.com/70873060 pass:autolargueur
https://vimeo.com/70870011

betosoria - 4-11-2013 at 01:32 AM

More on the loads of the release:

Got the message from Rico:

"it resists not 150kg but 300kg.. the manual release must deploy with a force less than 10kg with a charge of 200kg, it must resist 300kg. The measures I made make the release deploy with less than 5kg.. it is even better".

"il ne resiste pas à 150 mais à 300kg ..le largueur manuel doit larger sous charge par une force de moins de 10 kg en charge de 200 , il doit resisté à 300 kg de charge .mes mesure faite le largueur declenche à moins de 5 kg .. c'est encore mieux"


MDK - 4-11-2013 at 09:36 AM

betosoria, from the video that system looks like it works well, however it appears that the pulley and release stay with the kite, this is what I like about the MK splitter, the pulley and release stay with you and only the kite is released.

WELDNGOD - 4-11-2013 at 09:59 AM

Quote: Originally posted by MDK
My local welder would build me a buggy for that

:o:o:o What is he building it out of? I can't even buy the material for that price. Unless it is steel...:lol:

popeyethewelder - 4-11-2013 at 10:29 AM

also, the rig doesn't like salt water...!

MDK - 4-11-2013 at 11:20 AM

Quote: Originally posted by WELDNGOD
Quote: Originally posted by MDK
My local welder would build me a buggy for that

:o:o:o What is he building it out of? I can't even buy the material for that price. Unless it is steel...:lol:


Yeah I was exaggerating, :)

rico - 4-11-2013 at 01:13 PM

Quote: Originally posted by popeyethewelder
also, the rig doesn't like salt water...!


Hello my name is rico ..i m french sorey for my language.

translation
the width is a width for kite surfing .. not planned for salt water? :lol:
it is a real normed 52-503 width under load tested in the laboratory .. and works even in manual.

Popeye .. reminds you of me? you had a system copy (hard copy) ...:rolleyes:
width that it works as a CE

rico - 4-11-2013 at 01:20 PM

Popeye is you ready to test your width?
by -18 ° ... with 70% sand and 10% water?

that your width always fonctione with these constraints?
with a break - 300 KG?
Thy width works with a force of less than 10 kg under a load of 200kg TRUE? :D

Kamove the width is a proto made ​​for NOT MAKING MONEY

made for either manual or automatic release less than 100 euros :P

popeyethewelder - 4-11-2013 at 01:27 PM

Quote: Originally posted by rico
Quote: Originally posted by popeyethewelder
also, the rig doesn't like salt water...!


Hello my name is rico ..i m french sorey for my language.

translation
the width is a width for kite surfing .. not planned for salt water? :lol:
it is a real normed 52-503 width under load tested in the laboratory .. and works even in manual.

Popeye .. reminds you of me? you had a system copy (hard copy) ...:rolleyes:
width that it works as a CE


I must apologise if this system is ok with salt water, I was given this information 2nd hand, obviously wrong. I must confess I am struggling with the rest of your post

rico - 4-11-2013 at 01:32 PM

the system

hanging stall
http://vimeo.com/73556583
the only problem is to automatically open hands :D

rico - 4-11-2013 at 01:38 PM

I do not know who you have to know this information ...
I guess almost ..

POPEYE you do not remember me?
Rhooo ..... a system of autolargage copy powerkite.net, but possibilities of loops
I send a mel .. You do not remember? me yes
okay .. the system is not made ​​for the biznzss 250 euros .. it is a personal installation less than 100 euros

betosoria - 4-11-2013 at 01:42 PM

It is made of aluminium. The advantage is that it releases even when it is full of sand. For example , a Wichard will not release under load with sand in it. I wonder if the Mk splitter will release under150kg of load, I would think it will. Also, it would be interesting to know if the Mk splitter can release with sand and water in it. The Mk splitter is kind of large and heavy. I wonder how much does the Mk splitter weight and it’s dimensions. Rico’s KAmove based designed can be 19cm with a Holt pulley around 207g only the manual release.
The KAmove is made for kite surfing, so it will work in salt water. I guess that in order to maintain a highly reliability as a security device designers suggest that is changed every year, from here Popeye’s comment that in a sense it does not “like” salt water but id does work with it present.
However, it should be noted that the KAmove has been tested in a lab under a specific norm, to my knowledge, the only release that complies with a norm. It would be interesting to know if the Mk Spitter would pass the lab test to be certified under the norm. Even not in lab it would be good to know if the Mk Splitter, with a piston design, will release with sand and under heavy load.

I am really no sure which system is the best for me. I hope that Mike, or the designers, can do some tests with the Mk Splitter in order to have more info on it in order to make my mind on which more suitable and to know the advantages of each one.


rico - 4-11-2013 at 01:45 PM

I am ready to make a system for exchange of test in real conditions .. no problems
I am ready
The tests will be done on static gantry load of 100 kg .. with release by autolargueur
then test done by a dynamic driver.
It suits me very well

I therefore propose the deal? OK for me

rico - 4-11-2013 at 01:53 PM

the Kamove is CE 52-503

no problem


http://saucisseman.free.fr/afnor/FA135940.pdf


WELDNGOD - 4-11-2013 at 03:43 PM

Quote: Originally posted by betosoria
The advantage is that it releases even when it is full of sand. For example , a Wichard will not release under load with sand in it.


Not true... You have been using the WRONG one. A torsion Wichard does not have a pin. It will release with heavy load and covered with sand.

725.jpg - 31kB

MDK - 4-11-2013 at 05:43 PM

I am having trouble with rico's posts but if he is comparing to the MK splitter, the MK splitter does not use a wichard. The biggest advantage of the MK splitter is that the rigging stays with the pilot and is not released with the kite. my previous set-up (similar to the one above) nearly broke my jaw while testing it. as far as how the MK splitter holds up to sand and water I wouldn't know, my playground is in the desert and once I used a small amount of lube I had no trouble with it. Popeye, did you have any trouble with sand? when I received the MK splitter my first thought was that it was a little heavy and how was this going to affect things, well it didn't much, I swapped my strop for a little heavier one to prevent twisting and the extra weight was not noticeable. Also does the KA come with a pulley? that will account for some difference in cost. with the MK the swivel and pulley ride on replaceable sealed bearings. please know that I am a consumer on this and am not paid or compensated for my opinion on the MK splitter. BTW MK does not stand for Mike Kenley :)

MDK - 4-11-2013 at 05:56 PM

Gerd Tschampel has years of experience with the MK Splitter, he is a solo distance record holder and advocate of the MK splitter https://www.facebook.com/gerd.tschampel

rico - 4-11-2013 at 11:25 PM

e separator is a Kamove width kite surfing .. snowkiting is made for it as tested is validated.
The wishar is only a separator charge for boat .. so not planned for kite surfing.
This is a separator wishar OK, but it does an automatic system?

I'm not paying either for advertising ..

SEVERAL person uses the system .. the system Kamove have been used for the tournament europe BORKUM .. no problem,

to maintain the KAmove is also rinse with a small and a drop of oil

the width is planned for functioned kit surfing and snow kiting .. therefore necessarily in salt water .. AND by negative temperature of - 18 °

rico - 4-11-2013 at 11:47 PM

do not know Gerd Tschampel .
I request an automatic width ca not drive fast .... but open when prompted .
I am not sponsored by anyone . I give facts I verified under load .. not pulling over . automatic complete system works ..

after you have installed this system , I am sure he should even to beginners .

the price is estimated at about 100 euros ready to be used

I contacted SEVERAL manufacturing wing .... ca interested do that if I give them a prototype

There have been no follow

KITEATTIDUDE have already contacted also OZONE and Peter Lynn .

they go with the prototype and after it is finished.

I have no business gait , today I have three prototype .. it works very well . So I keep them . although I remain alone in using this system . it's perfect for my use .

those who REALLY view the system , find it very interessant.le only problem is the rose. I am not a commercial .. I made ​​just for fun and sharing .. I did not win one of euros this idea.

if some are interested ... Contact KITATTIDUDE ..
cordially

sorry for my english .. this is the google translation

rico - 4-11-2013 at 11:58 PM

uhhh
I do not run every day in the desert .. the temperature is slightly cooler here in my home ...

I guess england enters a new era ... it's so hot in home?

the planette warms .. I still hope for the rest of KAMOVE if the climate warms and the salty water become something endangered

If you have any questions, no problem (french forum PKN)
cordially
rico

MDK - 5-11-2013 at 09:11 AM

Are we entering into a global warming debate :)
I have no doubt that your system works like you say.
We can only debate the differences:
1. the most significant is the fact that with the MK splitter the rig stays with the pilot.
2. the MK QR is built into the pulley system.
3. the pulley rides on a sealed bearing, not open for sand and dirt to get in.
4. the swivel rides on a sealed bearing as well.
5. no multiple connections.
6. no whichards to jam twist or hang up.
7. no ropes & balls to tangle.
8. there are more than 100 units currently being used around the world.
rico your system looks like it works very well and I commend you for developing it.

rico - 5-11-2013 at 09:48 AM

did not say I comfirme .
the system starts, in fact with the handles it weighs 242g
- The poilie is ... petzl
the swivel is made of stainless
the width of aluminum.
This width allows manual release AND / OR automatic.
you can get up the tank without removing it from the wing.
Each piece is changed independently .
Price 59 euros Kmove
Price pulley 10/15 euros
Swivel 11 euros ( one half is used )

as the kamove the elastic keeps the changeable ( an elastic parts more)
The KAmove have been tested by myself 75 kg
100 kg as a friend while the automatic static load reel.un another friend both manual release .. he weighs 140 kg
This width KAmove have been tested in the laboratory full version of sand / salt / temperature negative athmosphere with ice on it.
This works because width tested / standardized AFNOR 52-503
The only current standard width on the load in the middle of practice kite and kite buggy ..
The width you told me you t he underwent such tests . by a certified laboratory ?
for Kamove . comfirme I ..
I tested the complete system in real terms .. it works .. I also comfirme ...
I returned from real experience being done , I do not sell anything .. I adapt existing system to a reliable , experienced.
the price of the sytem is very low .. but it is viable is still young .....

rico - 5-11-2013 at 10:14 AM

I would like to know in what conditions MQ system as t he been tested? .. and by whom.

t have been tested in charge? in real load in porch with this same tension over 299 kg. in manual and automatic.

I request the opportunity to see the results of tests done without doubt by a certified independent laboratory.
I think it have been ... a system of security should undergo such tests, I imagine it to have been minimal.

This is not because the system have been sold to 100 copies it reliable.
for example, the width sold by LIBRE (Holt Snatch Block) let me chuckle ... this is hilarious .. and yet island is sold SEVERAL hundred copies

:eekdrull:

MDK - 5-11-2013 at 11:32 AM

you will need to contact the MK splitter manufacture to answer your questions about lab testing. I do not chuckle at the MK splitter, but I have chuckled at some things that have been tested in labs. ok ok if you insist I will do a load test on the MK splitter but you may regret the outcome :) because the pulley carrying the load splits I don't think it will take much at all to trigger the system, no matter the load. I will even dump sand and water on it. :) the things I do....

flyhighWNY - 5-11-2013 at 11:55 AM

biting my 'inexperienced' toungue!

popeyethewelder - 5-11-2013 at 12:39 PM

Quote: Originally posted by MDK
ok ok if you insist I will do a load test on the MK splitter but you may regret the outcome :) because the pulley carrying the load splits I don't think it will take much at all to trigger the system, no matter the load. I will even dump sand and water on it. :) the things I do....


lol....unfortunately I don't think there is anything else out there that you can buy that comes remotely close to the quality and execution of the MK Splitter, and there is nothing you can say or do to convince Mike and I any differently, anyone who is lucky enough to own one would never use anything else.....the designer of the system you are referring to rico suggests changing it every year....?? why is that?

I have no idea if the splitter will open on sand but I would suggest it would without much trouble.

I only use the tether when conditions warrant it, high wind, gusty conditions, the moment my back side leaves the seat a few mm more than I have set the tether, the kite is released.... I still even at this stage, if it has not caught me out by too much of a surprise have hold of the handles, and could still possibly control and land the kite, if its just too much or I am completely taken by surprise, the kite is gone, and I am still sat in my buggy, alive without broken bones.

Even in a buggy flipping situation, the kite is gone, so in that case which possibly could be the only case for it getting covered in sand, I am already safe, and the kite would have deflated to a crumpled mess on the floor.

Rico if the parts of your unit are made of aluminium and the designers suggest changing it every year, then in the long run the Splitter will be cheaper, but cost is immaterial if you value your neck and back.

I am not indorsed by MK in anyway either, you have just stumbled upon two extremely happy people with a quality product that we have come to rely/depend upon for rare but unwanted OBEs. (The MK does not stand for popeyethewelder either )

rico - 5-11-2013 at 12:56 PM

the big difference , that I have nothing to sell.
I will not contact anyone , I 've already done for only a safe gait nonprofit .

it's just the purpose of my gait .. just sharing .

I know very well the system of autolargage Kamove .. I just fit my needs .
if tomorrow , I 'm the only one ride with , it does ask me no problems , the system is viable AND reliable .. and I tested under static load 100kg , and I weighs only 70kg .
my dynamic tests are done too. for me, I would not stay in back .. .

In fact I suggest you test your system you use .. this is a kamove or another .. and the load test .. gantry version autolargage .. I did several test , I turned the system in all directions ( sometimes slept badly ) .. I tried all possible reliability .. and test it were made ​​between 30 and 50 times, if any of these load tests , one and only one time, it does not walk .. I remade everything to understand why.

I have this system , so it must remain unique, it is not a problem , I admit it
I have nothing to sell.

popeyethewelder - 5-11-2013 at 01:04 PM

Quote: Originally posted by rico
the big difference , that I have nothing to sell.

I have nothing to sell.


neither do I...:thumbup:, I am thrilled you are happy with your system, lets leave it at that ehh because we are just going around in circles

flyhighWNY - 5-11-2013 at 01:11 PM

TY was you not me!

rico - 5-11-2013 at 01:15 PM

Quote: Originally posted by popeyethewelder
Quote: Originally posted by MDK
ok ok if you insist lol....unfortunately I don't think there is anything else out there that you can buy that comes remotely close to the quality and execution of the MK Splitter, and there is nothing you can say or do to convince Mike and I any differently, anyone who is lucky enough to own one would never use anything else.....the designer of the system you are referring to rico suggests changing it every year....?? why is that?


you had to necessarily make your load tests .. your real tests of ejection .. voluntary or involuntary. I hardly doubt.
can you see them?

for me .. below 100 euros .. I have my account .. does it work that fits me very well

MK on it is the warranty? for life?
275 .. I hope it is swollen but I hope for you.

you control your security system all year?
this is the only contractual guarantee that makes you KITATTITUDE

POPEYE that uses the width MK is not for me, not a guarantee.
POPEYE you pay the width MK how ? can be a gift ?
I have nothing to sell, I 'm not sponsored . no deal with kiteattitude ... it is just concluding tests .. I have hidden in the kidney powerkitenet forum that popeye know well .. it just occasionally take things ... in such an automatic width that I thought in 2009 .. it should be on the forum ;-) popeye

how many have you sold MK France ?
or are your return experience ... ? only some cameras have allowed to sell the MK ? it is very strong .. almost .. the lobing
sorry , I have nothing to sell
Continiation good to you ...

cordially

for all those interested I'm available on the french forum .. I only speak french .. but I make an effort to meet you personnaly

 Pages:  1
